To achieve the the
greatest degree of realism, many modeling projects desire lighting effects
that go well beyond simple static lighting. Many require effects that are quite dynamic, producing animated behavior to mimic
a wide variety of devices. Below are our products
specifically designed for LEDs that we've developed
to support a wide range of dynamic lighting effects. We hope you find them
innovative.
Due to the
wide variety of modeling scales, LEDs for use with
these products are sold
separately and can be found by clicking on the
Lighting Products link at the left side of this page.
|
Star Trek TOS Starships Lighting Kit for 1:1500 scale & larger models
The NK032 Lighting Kit consists of two circuits configured to produce lighting effects for Star Trek TOS (The Original Series) Starships. The primary (larger) circuit is programmed to realistically simulate the Navigation lights, 2 outputs for white LEDs for lighting the Bridge/Sensory/Engineering Hull/Saucer section, an orange LED for the Impulse Engine, 6 LED outputs for the 2 Warp Nacelles, and a single white LED output for the Starship's I,D. lighting. These outputs are timed to sequentially turn on. Click on Connecting in the More Info table above for details. The secondary circuit (also a separate product shown below) is for Phaser & Photon Torpedo control.
|
|
Star Trek TOS Starships Photon torpedo & Phaser simulator This Simulator is programmed to realistically simulate the visual effects of Star Trek Starships of The Original Series (TOS), Photon Torpedo initialization (red LED) and firing sequence (white LED), and (blue LED) Phaser firing. There are separate input controls to fire each weapon.
|
|
Enterprise NCC-1701A Navigation Lights Simulator
The N8110-13 is programmed to realistically simulate the port (red)
& starboard
(green)
navigation marker lights of Star Trek®
Enterprise version
NCC1701A.
Additionally, their are
two outputs for white LEDs
for marker lights for the warp
nacelles.
|
|
Enterprise NX-01 Navigation Lights Simulator This module is programmed to realistically simulate the port & starboard navigation marker lights of Star Trek® Enterprise version NX-01 (the original, Commissioned in 2151 (Stardate -172000). It is configured to drive 3 series pairs of red & green LEDs with two pairs blinking (saucer top & bottom) at the correct rate, and one pair on continuously (warp nacelles).
|
|
Photon Torpedo Simulator The N8091 Simulator is programmed to realistically simulate the visual effects of the Star Trek® Photon Torpedo initialization and firing sequence like that seen on the starship Enterprise. The module can be setup for manual firing only, manual firing with auto-repeat option, or auto-repeat only. The N8091B has the added "throw" optionThe NLD version uses our low-voltage 3.3-volt simulator.
|
|
Enterprise NCC1701A Phaser The N8095 is designed to simulate the approx. 4-second burst of light (blue LED) as seen when firing a phaser cannon on-board the early NCC-1701A Star trek Enterprise.
|
|
Enterprise NCC1701 Phaser The N8094 is designed to simulate the approx. 4-second burst of light (red LED) as seen when firing a phaser cannon on-board the early NCC-1701 Star trek Enterprise.
|
|
At just 3/4" square, this product series includes a state-of-the-art current source which provides a constant 20 ma for LEDs connected to the module. This means any color 20 ma LED can be connected without the need for external current limiting resistors, multiple LEDs can be connected in series (requires a power source of sufficient voltage) and different colors of LEDs can be combined in the same series. All will operate at 20 ma. For certain applications it may be desirable to have the LED (or series string) connected to operate at less than full brightness. For this purpose, solder pads are included on the back of the module for placement of resistors to adjust of current source output. Input voltage range 6-16 VDC. Extra power wires included. Super Flashers  AUTOMATIC CURRENT PROTECTION! |
|
Machine Gun Simulator This simulator generates a rapid stream of pulses alternating between 2 connected LEDs whenever the input pin is grounded. The timing and duration of these pulses mimics the appearance of automatic weapons fire like that of Star Wars® X-wing fighters. The N8060A version of this module is configured for 4 LEDs alternating between pairs to simulate 4 guns firing.
|
|

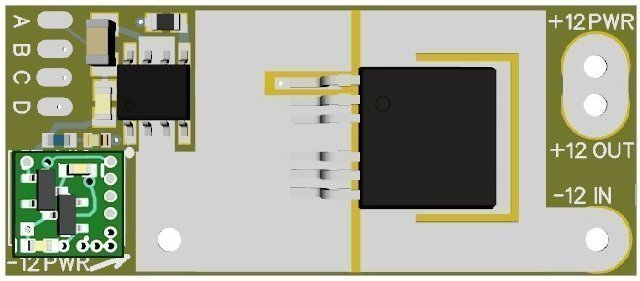

High-current Smoke Generator Controller & Timer The N8103B Smoke Generator Controller/Timer is essentially a very high current switching circuit combined with one of our N8050 single output Simulators programmed as a timing circuit. The timer is mounted on the Current Control main board. The heart of the Current control board is a N-Channel HEXFET Power MOSFET that can act as a power switch to easily control up to 16 Amps of 12-volts DC. Note: Actual power switched is based on power supply (not included) that is connected to the N8103B.
 |
