                  Connecting the N8080 4 red-LED alternating Simulator



Installing the N8080 is very straightforward. Its tiny size and thin construction will allow it to be placed in many spaces too small for even the smallest Z-scale decoder. Because the module has circuitry on both sides, care must be taken to be sure that the components or wires soldered will not make contact with any metal object (such as a locomotive frame) causing a short circuit.

Included with the module are two 6” lengths of #32 insulated wire. These can be used for power input wires.







                                Figure 1



Important note: A low-wattage iron with a pointed tip should be used for connection of wires. Too much heat or solder can easily damage the wires, decoder or module and void the warranty.

Also, all connecting wires should be pre-tinned before soldering them to the module. This will make connection quick and easy and ensure excessive heat is not applied to the solder points.



Connecting LEDs

When connecting the LEDs, proper polarity must be observed. LEDs are “polarity sensitive” and will not function if connected backwards. The N8080 is configured for the connection of 2 series pairs of 20 ma LEDs with device voltages of 1.85-2.2 VDC to solder points 3, 4 & 5. This covers all of Ngineering’s Micro and Nano red LEDs. The N8080 has on-board current limiting resistance to protect these LEDs so no external resistor is required.

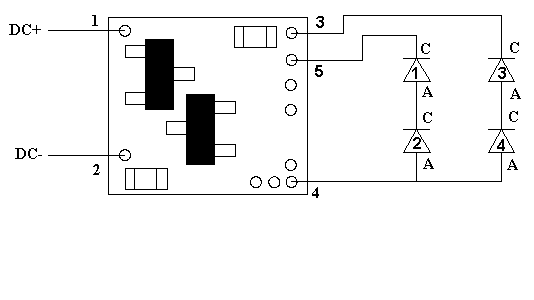

Using wire appropriate for the size of the LEDs and their placement in your project, connect the LED anodes (A) and cathodes (C) together as shown in Figure 2 below. Note that LEDs 1 & 2 are a series pair (wired anode to cathode) and LEDs 3 & 4 are a second series pair. Anodes of LEDs 2 & 4 are connected in common to solder point 4 Once again, be sure to use a low-wattage soldering iron when connecting wires to the module.





                                                              Figure 2

This completes hookup of our N8080 module. We hope the aded realism it provides enhances your enjoyment of the hobby.

If you need assistance or have questions, please contact: nsupport@ngineering.com

For product warranty details please visit:  www.ngineering.com
