LED Placement for typical Emergency Vehicle

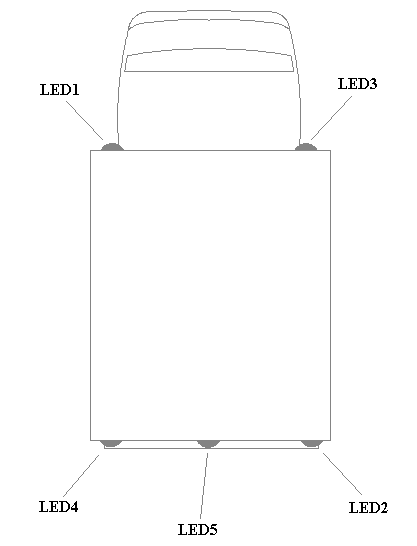

Shown above is an overhead view of a generic emergency vehicle (ambulance) with red strobes mounted at each corner of the main body. The LED series pairs are arranged diagonally so that when they flash they alternate both side-to-side and front-to-back, regardless of whether the vehicle is viewed from either side or front or back. Additionally, the 5th (white) LED is positioned in the center of the rear.
