Nano Super-white LED

LED shape style #1
LED shape style #2

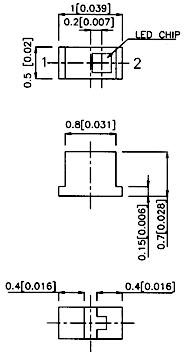

All dimensions:  mm (inches)









































© 2008 Ngineering



  (1) Pulse conditions of 1/10 duty cycle @ 0.1ms width
Parameter Description Symbol Unit Value
Power dissipation Pd mW 102
Recommended Forward Voltage Vf (Rec) V 3.3
Peak Forward Voltage Vf (Peak) V 4.0
Recommended Operating Current If (Rec) mA 20
Peak Pulse Current (1) If (Peak) mA 160
Average Luminous Intensity Iv mcd 150
Reverse Voltage

5 Volt
Operating Temp. Range -40 - +85 deg C
Storage Temp. Range -40 - +85 deg C
Lead Solder Temperature 230 deg C -for 3 seconds
